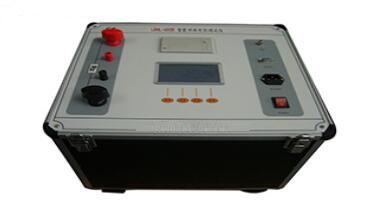

SFHL-600B智能回路接触电阻测试仪

发布日期：2020-06-20　点击：3614次

产品别称

智能回路电阻测试仪、智能接触电阻测试仪、接触电阻测试仪、开关回路电阻测

试仪、接触回路电阻测试仪



      产品简介

智能回路接触电阻测试仪是用于测量开关、断路器、变压器等设备的接触电阻、

回路电阻的专用测试设备。其采用典型的四线制测量法，通过输出一个直流电流

，施加于被测体的两个端钮之间，并测量电流流过被测体所产生的压降，然后通

过电压和电流之比得出被测体的直流电阻。主要由恒流源、前置放大器、A/D转换

器、指示装置等部分组成。

Loop resistance tester is the special test equipment for measuring the

contact resistance and loop resistance of some devices such as switch,

circuit interrupter, and transformer and so on. It adopts the typical

four-wire method of measurement which helps get the DC resistance

through the following steps: outputting a DC current, applying the

current to the tested body by linking its two terminals, and measuring

the voltage drop when the current goes through the tested body, then

dividing the current by the voltage. In addition, it mainly consists of

constant current source, preamplifier, A/D converter, indicating device

and so on.



      产品特征

1  结合硬软件设计：智能回路接触电阻测试仪采用高精密电子线路和高性能单片

机，使得仪器具有测量速度快，数值稳定，重复性能好等特点。

1）Design with hardware and software: endowing the instrument with some

features such as high measuring speed, numerical stability, and good

repeatability and so on by using electronic circuit of high precision

and SCM of high performance.

2  实时监测显示现场电阻值、电流值。

2) Real-time monitor will display site resistance and current.

3  电流持续时间1分钟以上，完全符合JJG 1052-2009回路电阻检定规程。

3) If the duration of current is over 1 minute, it completely accords

with the verification regulation of JJG 1052-2009 loop resistance.

4 智能回路接触电阻测试仪 测试电流来自高精度的100A/200A/600A开关式恒流电

源，无需人工调节，测试迅速准确。

4) A 100A/200A/600A switch constant-current supply of high precision,

for testing the current, can test quickly and accurately without manual

adjustment.

5  具有打印、存储、实时查看数据等功能。

5) It has the functions of printing, storing, real-time viewing data

and so on.

6  采用了大屏幕汉字显示、菜单操作，界面友好，一目了然，方便操作。

6) It is with a large screen to display characters, menus to operate,

and friendly interfaces to understand and process easily.

7  微型打印机为热敏式打印机，速度快，表面可直接安装打印纸。

7) Miniature printer is thermal printer with fast speed, which can be

installed printing paper directly.

8  具有电压正负极之间及电流正负极之间互换接线测量功能。

8) It can also measure when exchanging wirings between positive and

negative poles of voltage, and between positive and negative poles of

current.

9  智能回路接触电阻测试仪通过RS232串行口对设备内的数据进行管理，实现无

纸化办公。

9) Manage the data of equipment through serial port RS232 instead of

paper.



      产品参数

1 测量范围：100A      0——20mΩ      持续300S

            200A      0——10mΩ      持续120S

            600A      0——3mΩ       持续60S

1) Measurement range: 100A      0——20mΩ      last 300S

                      200A      0——10mΩ      last 120S

                      600A      0——3mΩ       last 60S

2、测量精度：优于0.5%

2) Measurement precision: better than 0.5%

3、分辨率：0.01μΩ

3) Resolution: 0.01μΩ

4、工作方式：连续测量

4) Operating mode: continuous measurement

5、显示方式：液晶显示

5) Display mode: LCD

6、计算机接口：RS232

6) Computer interface: RS232

7、打印方式：热敏打印

7) Print way: thermal printing

8、环境条件：

温度：－10℃—50℃

相对湿度：< 90%（25℃）

海拔高度： ≤1500米

电源频率：50HZ±1HZ

     8) Environment condition:

                   Temperature: －10℃—50℃

                   Relative humidity: < 90%（25℃）

                   Elevation: ≤1500m

                   Power supply frequency: 50HZ±1HZ

9  功率： ≤3100W

9) Power: ≤3100W

10  外形尺寸：长 460mm*宽400mm*高380mm

10) Boundary dimension: length 460 mm*width 400mm*height 380mm

11  重量： 16.5 Kg

11) Weight: 16.5 Kg
